In an age where clean energy is at the forefront of global conversation, nuclear power stands as both a promising solution and a subject of intense debate. But what really happens behind the thick concrete walls of a nuclear power plant? How does a system based on splitting atoms light up entire cities? In this blog, we will explore how a nuclear power plant works, diving into the science behind it, the engineering marvels involved, and the societal implications. Whether you're a student, an enthusiast, or just curious, this post will help demystify the process.
What Is a Nuclear Power Plant?
A nuclear power plant is a facility that uses nuclear reactions to generate electricity. Unlike fossil fuel plants, which burn coal or gas, nuclear plants harness the heat produced by nuclear fission — the process of splitting heavy atomic nuclei such as uranium-235 or plutonium-239.
Basic Principle of Nuclear Power Generation
The fundamental principle of a nuclear power plant lies in nuclear fission. When a heavy atomic nucleus (like uranium-235) absorbs a neutron, it becomes unstable and splits into two lighter nuclei, releasing:
-
A significant amount of thermal energy (heat)
-
More neutrons, which can trigger additional fission events (a chain reaction)
This heat is used to convert water into steam, which then spins turbines connected to generators, ultimately producing electricity.
Nuclear power plants commonly use the fissile isotope, or radioactive substance, uranium-235. When bombarded by neutrons, this unstable isotope can conduct a fission reaction.
 |
| Image Credit: Martech Boiler |
A uranium-235 atom is split into two smaller atoms during this process, which releases more neutrons. The total mass of the products is less than the total mass of the original material, with the lost mass converted into heat and electromagnetic radiation. Simultaneously, a significant amount of energy is released, as described by the famous equation E = mc2.
 |
| Image Credit: Martech Boiler |

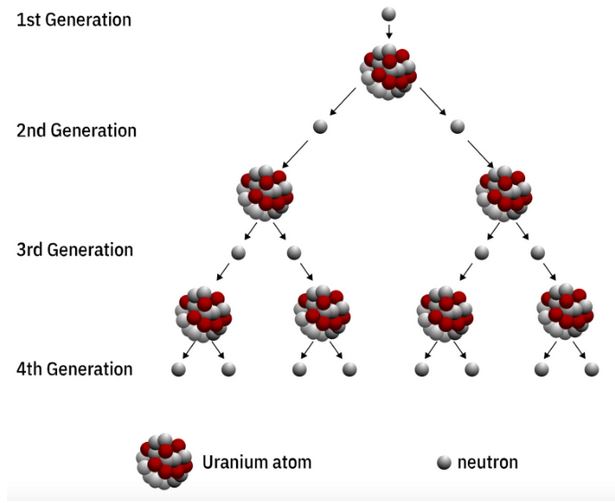

A sustained fission reaction is an exothermic process in which neutrons from the first event keep colliding with other atoms to produce a chain reaction. When one kilogram of Uranium-235 (U-235) undergoes nuclear fission processes, around three million times as much energy is released as when one kilogram of coal is burned conventionally.
 |
| Image Credit: Martech Boiler |
Key Components of a Nuclear Power Plant
A typical nuclear power plant consists of several core systems and components:
1. Reactor Core
The reactor core is where the nuclear fission takes place. It contains:
-
Fuel rods: Long tubes filled with uranium or plutonium pellets.
-
Moderator: A material (like heavy water or graphite) that slows down neutrons to sustain the chain reaction.
-
Control rods: Rods made of neutron-absorbing materials (like boron or cadmium) that can be inserted or withdrawn to control the rate of the reaction.
2. Coolant System
The coolant (usually water, sometimes liquid metal or gas) circulates through the reactor core, absorbing the heat generated by fission.
3. Steam Generator (in pressurized systems)
In pressurized water reactors (PWRs), the primary coolant transfers heat to a secondary loop through a steam generator, converting water to steam without radioactive contamination.
4. Turbine and Generator
The high-pressure steam spins a turbine, which is connected to a generator. As the turbine blades spin, the generator converts mechanical energy into electrical energy via electromagnetic induction.
5. Condenser and Cooling System
After steam passes through the turbine, it enters a condenser, where it's cooled (often using river or sea water) and turned back into liquid water to be reused in the cycle.
6. Containment Structure
To ensure safety, the entire reactor is housed inside a containment structure, typically made of steel-reinforced concrete, which contains radiation and protects against external events.
Types of Nuclear Reactors
There are several types of nuclear reactors in operation globally. Some of the most common include:
1. Pressurized Water Reactor (PWR)
-
Uses water as both coolant and moderator
-
Water is kept under high pressure to prevent boiling
-
Heat is transferred to a secondary loop via a steam generator
 |
| Pressurized Water Reactor (Credit: United States Nuclear Regulatory Commission) |
Water is injected under high pressure into the reactor core of a Pressurized Water Reactor (PWR) to absorb heat produced by the nuclear reaction. The heated water then generates steam by passing through a heat exchanger, usually a shell-and-tube heat exchanger (steam generator). The major loop's entrance and exit temperatures (subcooled water) range from 289 to 325 °C, and its water pressure is roughly 160 bar. The secondary loop operates with the water at 275 °C and a dryness fraction of 99.5% at a pressure of roughly 60 bar. To generate electricity, the saturated steam is subsequently fed into a steam turbine.
2. Boiling Water Reactor (BWR)
- Water boils directly inside the reactor vessel
- The steam produced directly powers the turbine
 |
| Boiling Water Reactor (Credit: United States Nuclear Regulatory Commission) |
The Boiling Water Reactor (BWR) use demineralized water for both cooling and neutron moderation. This reactor contains a single-loop process in which water absorbs heat from the reactor core and subsequently boils. The coolant is kept at around 76 bar, which causes boiling within the core at a temperature of 285 °C. next to the boiling process, steam is utilized to drive a turbine and subsequently condensed in a condenser prior to its return to the reactor core.
To maintain radiation safety, the water must be treated (ion exchanged) after condensation because it comes into close contact with the reactor core.
3. CANDU Reactor
- Uses heavy water (D₂O) as moderator and coolant
- Can use natural uranium as fuel
4. Fast Breeder Reactor (FBR)
- Uses fast neutrons (no moderator)
- Designed to generate more fuel than it consumes
5. Molten Salt Reactor (MSR) (experimental)
- Uses liquid fuel dissolved in molten salt
- High thermal efficiency and passive safety features
The Working Process: Step-by-Step
Let’s break down the operation of a PWR, the most common reactor type in the world:
Step 1: Fission Reaction
- Neutrons strike uranium-235 nuclei in the fuel rods.
- The atoms split, releasing heat and more neutrons.
- The chain reaction is moderated and controlled using control rods.
Step 2: Heat Transfer
- The reactor core heats the primary coolant loop.
- This high-pressure water transfers heat to a steam generator.
Step 3: Steam Production
-
The steam generator uses the heat to boil water in the secondary loop, generating steam.
Step 4: Electricity Generation
- Steam drives a turbine, which spins a generator.
- The generator converts this into electrical power.
Step 5: Cooling and Recirculation
- After passing through the turbine, the steam is condensed back into water using a condenser.
- The water is pumped back to the steam generator to repeat the cycle.
Nuclear Fuel Cycle
The nuclear fuel cycle covers the entire life of nuclear fuel, from mining to disposal:
-
Mining and Milling – Extracting uranium ore.
-
Conversion and Enrichment – Increasing the percentage of U-235.
-
Fuel Fabrication – Making fuel rods.
-
Reactor Operation – Fission occurs over several years.
-
Spent Fuel Handling – Removed and stored underwater or in dry casks.
-
Reprocessing or Disposal – Reuse or permanent disposal in geological repositories.
Safety Systems in Nuclear Power Plants
Safety is paramount in nuclear facilities. Plants incorporate:
- Redundant and diverse safety systems
- Emergency Core Cooling Systems (ECCS)
- Backup power supplies
- Automatic shutdown (SCRAM) systems
- Containment structures to isolate radiation
Famous Nuclear Accidents and Lessons Learned
Despite numerous safety mechanisms, there have been major incidents:
1. Chernobyl Disaster (1986)
- A flawed reactor design and operator errors caused a meltdown.
- Massive radiation release; thousands were affected.
- Led to stricter international nuclear protocols.
2. Fukushima Daiichi (2011)
- Triggered by a tsunami after an earthquake.
- Flooding disabled cooling systems, leading to core meltdowns.
- Spurred global safety reviews and shutdowns of older plants.
3. Three Mile Island (1979)
- A partial meltdown in Pennsylvania, USA.
- No deaths, but it caused public concern and regulatory reforms.
Advantages of Nuclear Power
- Low Greenhouse Gas Emissions – Near-zero CO₂ during operation.
- High Energy Density – A small amount of fuel generates large power.
- Reliable Base Load Power – Unlike solar or wind, nuclear offers 24/7 electricity.
- Reduces Dependence on Fossil Fuels
Disadvantages and Concerns
- Nuclear Accidents – Though rare, their impact can be catastrophic.
- Radioactive Waste – Long-lived waste requires secure storage for millennia.
- High Capital Costs – Building a plant requires billions in investment.
- Public Opposition – Often due to perceived risks and nuclear proliferation concerns.
The Role of Nuclear Energy in a Sustainable Future
With the urgency of addressing climate change, nuclear energy is regaining attention. Countries like France, Canada, China, and India are investing in next-generation reactors, such as:
- Small Modular Reactors (SMRs) – Compact, factory-built, scalable.
- Generation IV Reactors – Designed for safety, efficiency, and waste reduction.
- Thorium Reactors – Use thorium instead of uranium, potentially safer and more abundant.
Conclusion
Understanding the working of a nuclear power plant offers insights into one of the most powerful ways humans generate energy. Despite challenges, nuclear energy remains a key player in the pursuit of a low-carbon future. With technological advancements and robust safety measures, its role is likely to expand — especially as the world transitions from fossil fuels to sustainable energy systems.
If you’ve ever wondered how splitting atoms lights your home, now you know — it’s a complex but fascinating symphony of science, engineering, and innovation.
FAQs
Q1: Is nuclear energy renewable?
No, nuclear energy is not technically renewable, as it relies on finite uranium resources. However, it is sustainable due to efficient use and long-lasting fuel.
Q2: What happens to nuclear waste?
It’s stored in spent fuel pools, dry casks, or planned to be disposed of in deep geological repositories.
Q3: Are nuclear power plants safe?
Modern designs incorporate multiple safety layers, and statistically, nuclear is safer per kWh than coal or oil, especially regarding air pollution-related deaths.
