What is an Electric Generator?

Energy conversion is a general phenomenon utilized in different devices. An electric generator is a device that uses the principle of electromagnetic induction and converts mechanical energy into electrical energy. Generators work in the opposite way from motors, which use electricity to create motion. The fundamental concept is that an electromotive force (EMF) or voltage is induced when a conductor passes through a magnetic field. Almost all contemporary electrical generation is based on this phenomenon, which was initially identified by Michael Faraday in 1831.

Main Components of a Generator:

Before knowing the principle of working, we should be familiar with the parts of a generator:

Armature: In AC generators, the rotating component carries the magnetic field, and in DC generators, it carries the conductor. The source of its power is mechanical.

Stator: The stationary component that has magnets in certain small DC generators or windings in AC generators.

Field System: Generates the necessary magnetic field for induction. This could be a permanent magnet in tiny generators, but it's typically an electromagnet in larger systems.

Slip Rings and Brushes: They move the induced current from the rotor to the external circuit. They are mainly used in AC generators.

Commutator: It reverses the direction of current flow every half-cycle and converts AC to DC output. It is specially used in a DC generator.

Prime Mover: It is basically the mechanical input fed to the generator which converts other energy to mechanical energy and is utilized in generator.

Working Principle of a Generator:

Faraday’s Law of Electromagnetic Induction is nothing but the heart of an electric generator. The law states:

 “When a conductor is moved in a magnetic field, an electromotive force (EMF) is induced across it, proportional to the rate of change of magnetic flux.”

This electromagnetic field has the ability to generate useful electricity by driving a current through an external circuit. The induced emf across the conductor is proportional to the rate of change of flux linkage with the conductor.

Mathematically, ε = -N(dΦ/dt).

Where, ε = Induced emf

dΦ/dt = Rate of change of flux.

As our concerned variables are vector qualities, Fleming's Right Hand Rule can be used to determine the direction of the induced emf in the conductor. According to this rule, if you stretch your thumb, index finger, and middle finger on your right hand perpendicular to one another, and if you align your thumb and index finger on your right hand along the conductor's motion in the magnetic field, then your middle finger will show the conductor's emf direction.

Figure 1: Fleming's Right Hand Rule

When we rotate a single loop of a conductor in a magnetic field, one side of the loop comes in front of the magnetic north pole, and its motion is upward. Now, according to Fleming's Right Hand Rule, force is upward, magnetic field is from north to south, the emf will be induced inward direction. Another side of the loop then, is present in front of the magnetic south pole, and its motion is upward. Now, according to Fleming's Right Hand Rule, the force is downward, the magnetic field is from north to south, and the emf will be induced outward direction. The two sides frequently alter, one comes to the south and the other then to the north, and vice versa.

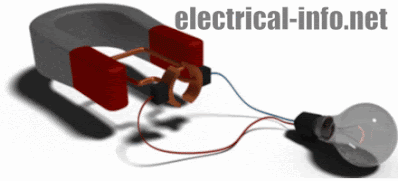

Figure 2: Generator's working principle

Connecting the two ends of the loop with slip ring attached to load with brushes, AC current is generated. If we then employ a commutator, it will reverse the direction of current flow every half-cycle and convert AC to DC output. Thus, from the same arrangement, we get both AC and DC currents, and the first one is called AC generator and the latter is the DC generator.

The steps of energy conversion at a glance:

• Mechanical Input: A shaft attached to a coil is rotated by a prime mover, such as an engine or turbine.

• Magnetic Interaction: A shift in magnetic flux is produced by a revolving coil or magnetic field.

• Induced Voltage: This movement creates a voltage across the conductor in accordance with Faraday's law.

• Electrical Output: This voltage produces usable electrical energy by driving current through a load.

Source:electrical4u.com

Electric generator types:

Generators can be categorized according to their application, excitation mechanism, and output type. An outline of the most significant kinds is provided below:

Based on the output:

1. AC Generator: A generator that produces alternating current (AC) with a periodic change in flow direction is called an alternator. It is utilized to power homes and businesses. Slip rings must be used.

2. DC Generator: It generates direct current (DC), which is a single-direction flow of current. This kind of generator is utilized in miniature electronics, electroplating, and battery charging. Commutator is required to rectify.

Based on the Excitation Method

1. Self-excited generator: The generator itself provides electricity to the field coils. It’s economical and extensively utilized.

2. Separately Excited Generators: An external source provides electricity to the field coils. It gives more stability and control over voltage.

Based on the Source of Mechanical Energy:

• Diesel Generator
• Gas Turbine Generator
• Steam Turbine Generator
• Hydroelectric Generator

Maintenance and Safety Considerations:

• To maintain the reliable operation of a generator:
• The brush and commutator should be under inspection.
• Lubrication is needed in moving parts to prevent wear.
• To avoid short circuits and grounding faults, insulation testing should be done regularly.
• Overloading should be prevented
• Qualified manpower should be employed for maintenance.

 Electric generators have transformed how people use energy, enabling off-grid   living, supplying essential backup power, and serving as the foundation of power   systems all around the world. The variety and influence of generators are   enormous, ranging from small portable devices to enormous turbines in thermal   plants. Generators, particularly hybrid models, will remain essential to ensuring   electricity stability and dependability as the globe moves toward a renewable   energy future.
